Pairing Remote

The Lightcloud Blue Remote allows for full area control and configuration in a simple, easy-to-use, wireless device.

Manage on/off switching, dimming, color temperature tuning, and set programmable buttons for custom scenes.

The Remote is a wireless, battery operated device that stays in an idle state until the user wakes it up to receive configuration changes.

The Remote has an indicator light on the top left corner on the face of the Remote.

Red – Remote is not paired

Green – Remote is paired

Tip: Add lighting devices to an Area, before trying to pair the Lightcloud Blue Remote.

LCBLUEREMOTE-W_Front-900x900

1. For first use, you may need to remove the battery tab from the back of the Remote. Wake up the Remote by pressing the center On/Off button and the 2-dot (..) button.

2. In the Lightcloud Blue app go to the Devices tab and click ‘Add Devices’.

searching remote

3. The app will look for the Remote and pair with it.

remote in ungrouped

4. Once the device is paired it will be listed under ‘Ungrouped Devices’. Click ‘•••’ on the device to access the ‘Device Settings’.

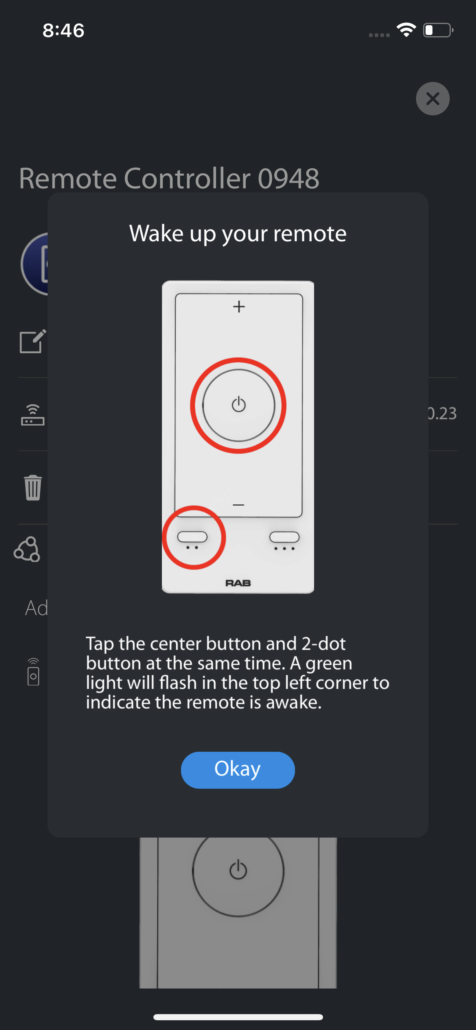

wake up remote

5. To access the Device Settings, you must first “Wake up” your remote by tapping the center button and 2-dot button at the same time. Once the remote is awake the message in the app will disappear and allow you to access the device settings.

add remote to area

6. Scroll to the bottom of the page and click ‘Add Area’.

select area to add remote

7. Select the area you want to add to the remote and click ‘Done’.

add remote successfully

8. The app is adding the remote to the area you selected

remote in the area

9. The remote was successfully moved to the area and you can now control that assigned area with your Remote.

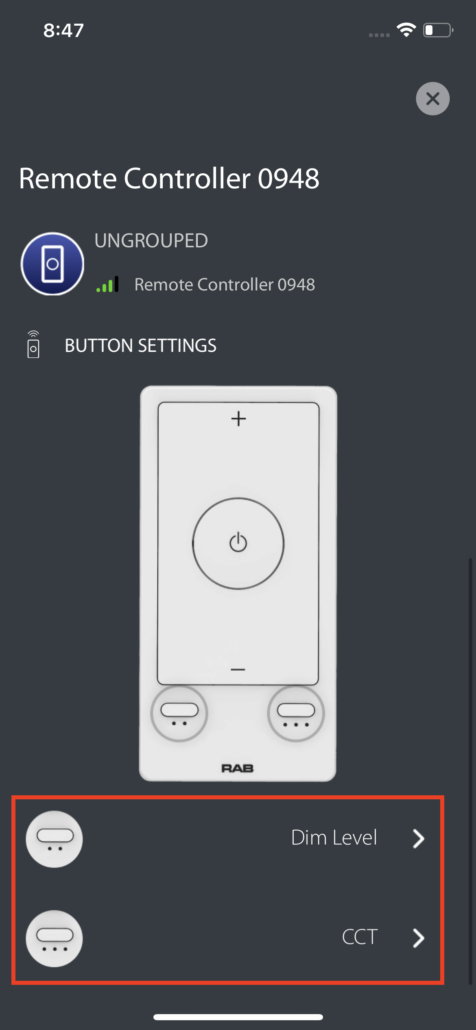

remote interface

10. 2 dots (..) button default function is changing Dim Level.

3 dots (…) button default function is changing CCT.

Tip: Check out “Custom Buttons on Remote” to custom your Remote.
